^{FLEXWARE LIVE®}
Features Include:

Dynamic Data Transfer
Data Trend Plot
Speed Compensated Curve
Coefficient Curve

Live Analysis of Compressor Performance

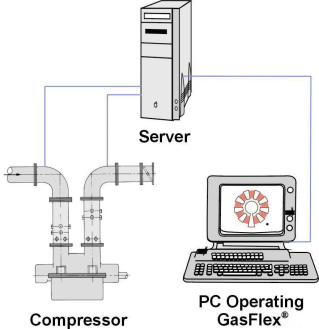

Monitor your compressor performance "Live" and continuously using Gas Flex^®. You can "see" where the compressor is operating and monitor transients as well as long term trends. Confirm Vendor guarantees and know the effectiveness of overhauls. Save time and money over expensive field performance analysis procedures yet still have PTC-10 quality results in hand.

Gas Flex^®

A BWR Gas Properties Program for Gas Compressor Performance

Gas Flex^® is an easy to use PC based Windows program that uses Benedict-Webb-Rubin (BWR) equations of state for accurate compressor performance analysis.

Program features include:

State Point Calculation - Input a pressure and temperature, Gas Flex^® calculates enthalpy, entropy, saturation point, specific volume, sonic velocity, Cp , K value, and dynamic viscosity.
Saturation Point Calculation - Input a pressure or temperature, Gas Flex^® calculates the corresponding saturation temperature or pressure.
Compressor Estimation - Input flow rate, inlet conditions, & discharge pressure, Gas Flex^® calculates inlet and discharge volume flow, polytropic head, discharge temperature, and gas power for multi-section compressors including sideloads.
Compressor Test Data - Input field or factory test data, Gas Flex^® calculates overall compressor performance including flow rates, power, and efficiency. Note - this option can also be used to verify compressor performance in new proposals.
Detailed Printout - includes all relevant pressures, temperatures, enthalpies, specific volume, performance calculations and field test results.
Control of Units - for any input or output item. All of the commonly used units (e. g. psia, Bar a, kg/cm2 a, etc.) are available.
Pull Down Windows are used for ease of program operation.

Presently, more than 90 gases are included in Gas Flex^®. Most of the commonly used hydrocarbons plus nitrogen, oxygen, air, refrigerants including R-134, and water vapor are available.

Flexware^® Startup Manual (1.2 mb)

Click Here HELP
For assistance on downloading this file

Data Analysis

Use the following Excel Worksheet for plotting the results of your analysis. The worksheet uses 5 points from the compressor manufacturers curve as a base line. The operating data is fan law corrected for comparison to the design curve.

Excel Worksheet Download

Click Here HELP
For assistance on downloading this file

Gas Flex^®Computer System Requirements:

IBM PC or compatible computer.
Windows Version 9x, 2000, Windows NT or XP.

Gas Flex^® Troubleshooting

Gas Flex^® will not install

Gas Flex^® will not execute or run
Verify that the hardlock is properly installed in the printer port. Remove and reinstall to assure good contact is made.
Follow directions in the installation directions.
Be sure that your computer has the proper hardware requirements. See the Introduction section for details.

Printer does not function
Verify that the printer cable is securely connected, the printer has power and a supply of paper that is properly loaded, and the printer is in the ready or on-line mode.
Check to see if the proper printer has been selected (see “Printers” under “Control Panel” in the “Program Manager”).
Consult your printer manufacturer’s manual.

Hardlock Compatibility

The parallel port hardlock supplied with the program, while compatible with most printers, does not always permit normal function of equipment attached through it. If possible, attach the hardlock to an unused printer port. If you experience trouble with printers, CD’s, zip drives, or other equipment connected to the printer port, first remove the hardlock and try using auxiliary equipment without the hardlock attached. With certain printers it may be necessary to start up your computer without the hardlock connected and with the printer directly connected to the printer port. Once the system is up and running, reconnect the hardlock to start and operate the Flexware programs. If necessary, USB port hardlocks are available.

Further help

For further help in resolving any difficulties with Gas Flex^®, or any questions regarding the Gas Flex^® or any other Flex program, contact the Flexware, Inc. Service Office (techserv@flexwareinc.com) or your nearest Distributor. Please have your software serial number available prior to calling. The serial number can be found in the product literature, or on the hardlock attached to the printer port.

Return to Flexware^® Home Page

For more Information:
Please contact your nearest Flexware, Inc. Office or Distributor

sales@flexwareinc.com
